N2 Tower Fire Suppression System
- 1Smoke Detectors
- 2Control Panel
- 3N2 sequence module
- 4Alarm
- 5N2 Generator first stage local application
- 6N2 Tower Second stage total flood
- 7N2 Generator sub floor total flood
- 8Server cabinet smoke detector
- 9Mechanical Damper, room pressure to open spring to close
N2 Generators
- Suppression Coverage: 440 ft3 (12.5 m3) Dimensions: 6" X 24" (15.2 cm x 60.9 cm)
- Suppression Coverage: 220 ft3 (6.2 m3) Dimensions: 6" X 12" (15.2 cm X 30.5 cm)
- Suppression Coverage: 15 ft3 (0.5 m3) Dimensions: 2" X 14" (5.1 cm x 35.6 cm)
Individual generators offer extended installation flexibility. They can be hidden in floors, ceilings or cabinets. Additionally, they can be installed in small spaces such as engine compartments.

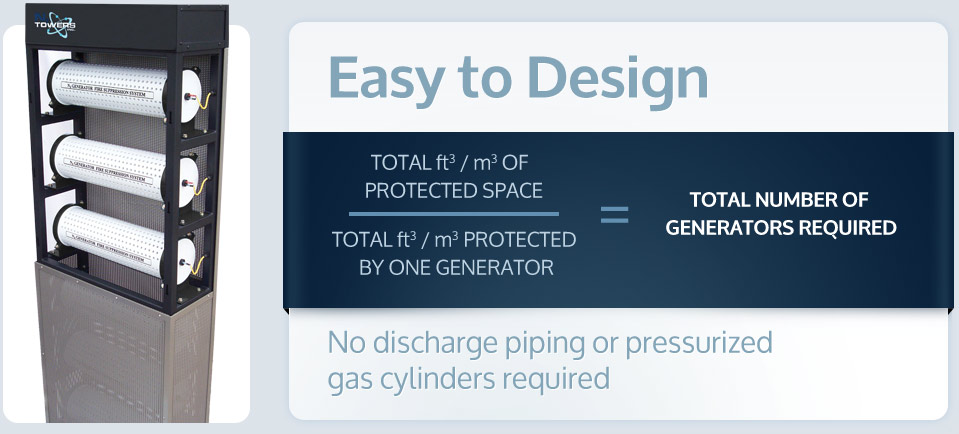

N2 Tower
- One 6" X 24" (15.2 cm X 60.9 cm) N2 Generator protects
440 ft3 (12.5 m3) space.
Six N2 Generators stacked in an N2 Tower protects a 2,400 ft3 (68 m3) space.
